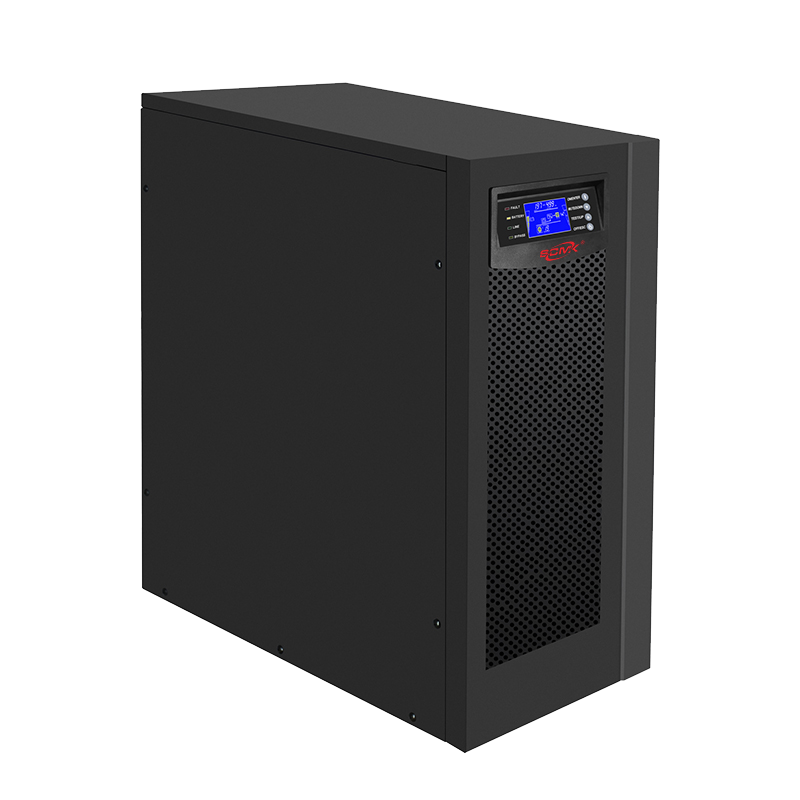

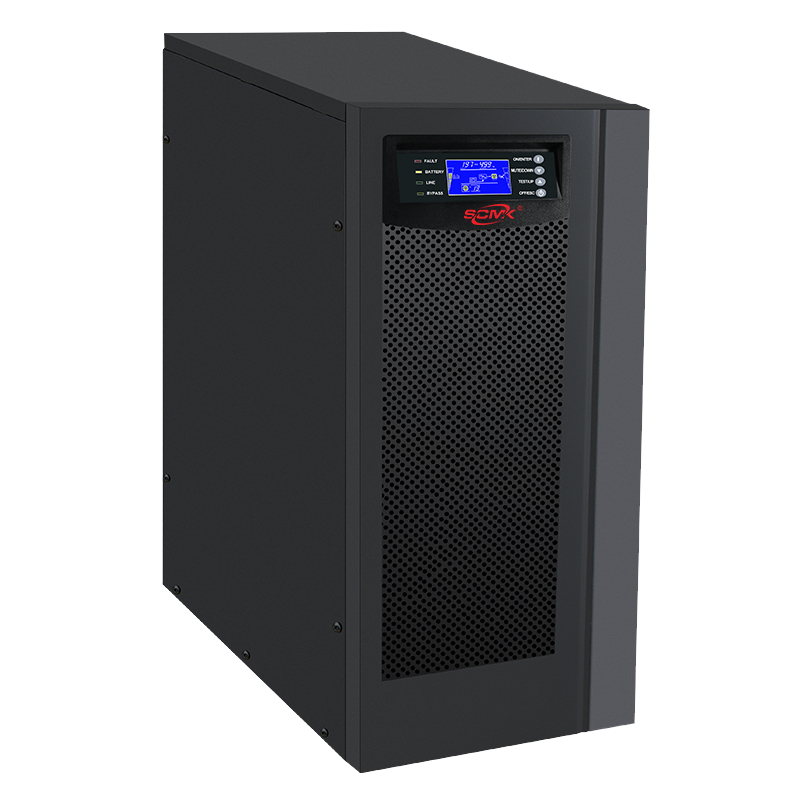

Single/Three Single High Frequency Online UPS
SC8110-8310 6-20KVA
Specially designed for small and medium-sized enterprise servers, with multiple installation methods including rack and tower, online dual transformation design, DSP digital technology, pure sine wave, excellent performance, and high-end appearance, it demonstrates the integration of cutting-edge technology and traditional products.
Output power factor of 0.8 (customizable 1), more suitable for the development trend of the load;
The overall efficiency of the machine can reach 90%, reducing the power loss of UPS;
Intelligent battery management to extend battery life;
Wide input voltage range, able to adapt to harsh power grid environments;
Can safely carry out online maintenance (optional) under continuous load power supply;
Rich communication and monitoring, allowing you to understand the power status anytime, anywhere.
Switchover duration: 0ms
Can be used with all kinds of engines
High performance index
Security and stability
Easy to maintain
A wealth of options
Technical parameter
Product model
C6K
Power coefficient
≥ 0.99 (100% load)
Battery pack voltage
Standard 192VDC
output frequency
50Hz ± 0.1@60Hz ± 0.1Hz
size
514 * 248 * 612
weight
50
Product model
C6KL (R)
Power coefficient
≥ 0.99 (100% load)
Battery pack voltage
Standard 192VDC
output frequency
50Hz ± 0.1@60Hz ± 0.1Hz
size
446 * 190 * 320
weight
12.6
Product model
C10K
Power coefficient
≥ 0.99 (100% load)
Battery pack voltage
Standard 192VDC
output frequency
50Hz ± 0.1@60Hz ± 0.1Hz
size
514 * 248 * 612
weight
59
Product model
C10KL (R)
Power coefficient
≥ 0.99 (100% load)
Battery pack voltage
Standard 192VDC
output frequency
50Hz ± 0.1@60Hz ± 0.1Hz
size
446 * 190 * 337
weight
13.2
Product model
C10KL (R)
Power coefficient
≥ 0.99 (100% load)
Battery pack voltage
Customizable to 240VDC according to user requirements
output frequency
50Hz ± 0.1@60Hz ± 0.1Hz
size
465 * 190 * 320
weight
14.8
Product model
C15KL (R)
Power coefficient
≥ 0.99 (100% load)
Battery pack voltage
Customizable to 240VDC according to user requirements
output frequency
50Hz ± 0.1@60Hz ± 0.1Hz
size
465 * 190 * 320
weight
15.3
Product model
C20KL (R)
Power coefficient
≥ 0.99 (100% load)
Battery pack voltage
Customizable to 240VDC according to user requirements
output frequency
50Hz ± 0.1@60Hz ± 0.1Hz
size
525 * 248 * 613
weight
15.3
